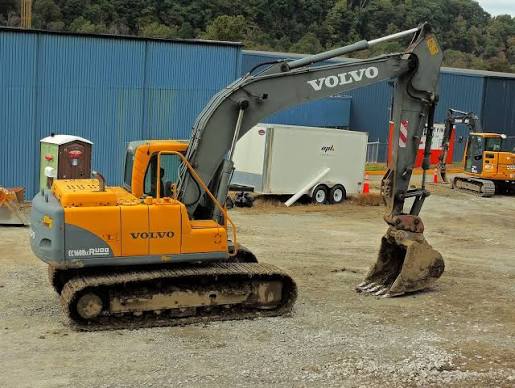

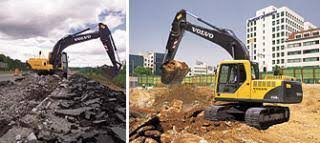

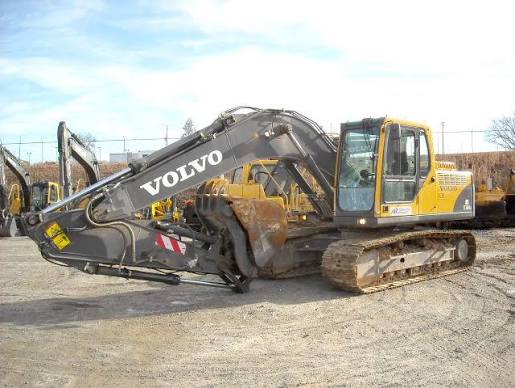

Volvo
EC160B LC
- Operating Weight
- 36,817 lb
- Max Digging Depth
- 227 in
- Max Digging Depth
- 239 in
- Net Power
- 109.0 hp
1 / 5
Image 1 of 5
Specifications
56 data points
Operating Specifications
| Operating Weight | 36,817 lb |
|---|---|
| Fuel Capacity | 68.7 gal |
| Hydraulic Pump Flow Capacity | 38.4 gal/min |
| Hydraulic System Fluid Capacity | 64.8 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 6.7 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.7 gal |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | D6D EBE2 |
|---|---|
| Displacement | 348 in³ |
| Power Measured @ | 1,900 rpm |
| Gross Power | 121.0 hp |
| Net Power | 109.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,450 rpm |
| Max Torque | 400 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 115 in |
| Length of Track on Ground | 126 in |
| Tail Swing Radius | 97 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 41 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 32,600 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 227 in |
|---|---|
| Max Reach Along Ground | 335 in |
| Max Loading Height | 241 in |
| Max Vertical Wall Digging Depth | 161 in |
| Max Cutting Height | 336 in |
| Shipping Length of Unit | 347 in |
| Shipping Height of Unit | 118 in |
Bucket
| Reference Bucket Capacity | 1.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.60 yd³ |
| Minimum Bucket Capacity | 1.10 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 239 in |
|---|---|
| Max Vertical Wall Digging Depth | 179 in |
| Max Cutting Height | 347 in |
| Max Loading Height | 251 in |
| Max Reach Along Ground | 348 in |
| Shipping Length of Unit | 342 in |
| Shipping Height of Unit | 119 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 254 in |
|---|---|
| Max Cutting Height | 355 in |
| Max Loading Height | 258 in |
| Max Vertical Wall Digging Depth | 196 in |
| Max Reach Along Ground | 362 in |
| Shipping Length of Unit | 343 in |
| Shipping Height of Unit | 120 in |
