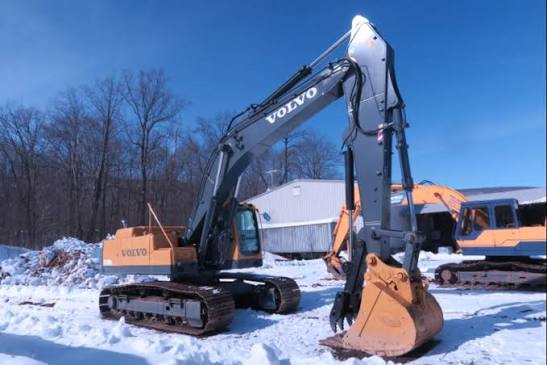

Volvo
EC330CL
- Operating Weight
- 79,530 lb
- Max Digging Depth
- 265 in
- Max Digging Depth
- 272 in
- Net Power
- 247.0 hp
1 / 5
Image 1 of 5
Specifications
60 data points
Operating Specifications
| Operating Weight | 79,530 lb |
|---|---|
| Fuel Capacity | 163.8 gal |
| Hydraulic Pump Flow Capacity | 148.0 gal/min |
| Hydraulic System Fluid Capacity | 132.1 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 11.1 gal |
| Cooling System Fluid Capacity | 15.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.6 gal |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | D12D EBE3 |
|---|---|
| Displacement | 738 in³ |
| Power Measured @ | 1,700 rpm |
| Gross Power | 265.0 hp |
| Net Power | 247.0 hp |
| Aspiration | Turbocharged with Intercooler |
| Torque Measured @ | 1,275 rpm |
| Max Torque | 1,088 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 126 in |
| Length of Track on Ground | 158 in |
| Tail Swing Radius | 137 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 48 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 2.8 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 57,770 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 265 in |
|---|---|
| Max Reach Along Ground | 402 in |
| Max Loading Height | 270 in |
| Max Vertical Wall Digging Depth | 190 in |
| Max Cutting Height | 397 in |
| Shipping Length of Unit | 430 in |
| Shipping Height of Unit | 146 in |
Bucket
| Reference Bucket Capacity | 2.39 yd³ |
|---|
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 272 in |
|---|---|
| Max Vertical Wall Digging Depth | 202 in |
| Max Cutting Height | 401 in |
| Max Loading Height | 278 in |
| Max Reach Along Ground | 404 in |
| Shipping Length of Unit | 430 in |
| Shipping Height of Unit | 142 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 295 in |
|---|---|
| Max Cutting Height | 407 in |
| Max Loading Height | 285 in |
| Max Vertical Wall Digging Depth | 217 in |
| Max Reach Along Ground | 426 in |
| Shipping Length of Unit | 430 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 324 in |
|---|---|
| Max Cutting Height | 418 in |
| Max Reach Along Ground | 451 in |
| Max Loading Height | 296 in |
| Max Vertical Wall Dig Depth | 243 in |
| Shipping Length of Unit | 430 in |
