Volvo

EC360BNLC

Excavator

Operating Weight
80,028 lb
Max Digging Depth
265 in
Max Digging Depth
272 in
Net Power
184.0 hp
All excavators

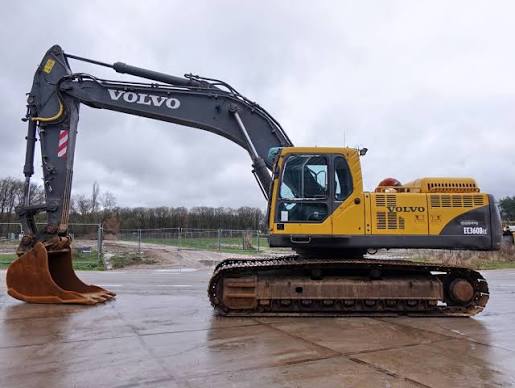

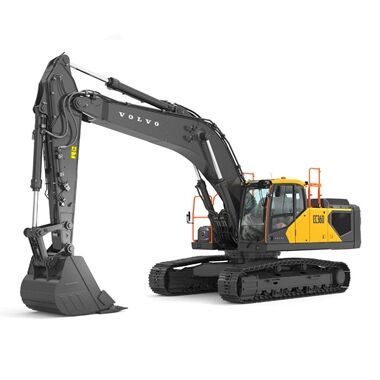

Volvo EC360BNLC Excavator
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

61 data points

Operating Specifications

Operating Specifications specifications
Operating Weight80,028 lb
Fuel Capacity163.8 gal
Hydraulic Pump Flow Capacity148.0 gal/min
Hydraulic System Fluid Capacity132.1 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity10.9 gal
Cooling System Fluid Capacity17.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.6 gal
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD12C EDE2
Displacement738 in³
Power Measured @1,700 rpm
Gross Power198.0 hp
Net Power184.0 hp
AspirationTurbocharged
Torque Measured @1,275 rpm
Max Torque998 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab126 in
Length of Track on Ground158 in
Tail Swing Radius134 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance48 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge95 in
Number of Track Rollers per Side8
Max Travel Speed2.8 mph
Shoe Size24 in
Number of Shoes per Side48
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth265 in
Max Reach Along Ground404 in
Max Loading Height270 in
Max Vertical Wall Digging Depth190 in
Max Cutting Height397 in
Shipping Length of Unit430 in
Shipping Height of Unit146 in

Bucket

Bucket specifications
Reference Bucket Capacity2.20 yd³
Maximum Bucket Capacity4.00 yd³
Minimum Bucket Capacity1.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth272 in
Max Vertical Wall Digging Depth202 in
Max Cutting Height401 in
Max Loading Height278 in
Max Reach Along Ground411 in
Shipping Length of Unit441 in
Shipping Height of Unit142 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth295 in
Max Cutting Height407 in
Max Loading Height285 in
Max Vertical Wall Digging Depth217 in
Max Reach Along Ground432 in
Shipping Length of Unit437 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth324 in
Max Cutting Height418 in
Max Reach Along Ground458 in
Max Loading Height296 in
Max Vertical Wall Dig Depth243 in
Shipping Length of Unit438 in
