Volvo

EC360NLC

Excavator

Operating Weight
77,382 lb
Max Digging Depth
261 in
Max Digging Depth
277 in
Net Power
184.0 hp
All excavators

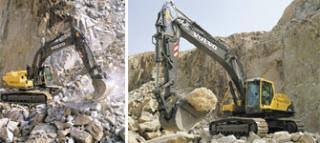

Volvo EC360NLC Excavator
1 / 5
Image 1 of 5
Image: motendo.com

Specifications

60 data points

Operating Specifications

Operating Specifications specifications
Operating Weight77,382 lb
Fuel Capacity149.3 gal
Hydraulic Pump Flow Capacity148.0 gal/min
Hydraulic System Fluid Capacity132.1 gal
Hydraulic System Relief Valve Pressure4,975 psi
Engine Oil Capacity9.0 gal
Cooling System Fluid Capacity13.0 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.6 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelM11-C
Displacement659 in³
Power Measured @1,700 rpm
Gross Power198.0 hp
Net Power184.0 hp
AspirationTurbocharged
Torque Measured @1,300 rpm
Max Torque868 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab126 in
Length of Track on Ground158 in
Tail Swing Radius133 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance49 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Number of Track Rollers per Side8
Max Travel Speed2.8 mph
Shoe Size24 in
Number of Shoes per Side48
Number of Carrier Rollers per Side2

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth261 in
Max Reach Along Ground396 in
Max Loading Height269 in
Max Vertical Wall Digging Depth228 in
Max Cutting Height395 in
Shipping Length of Unit422 in
Shipping Height of Unit143 in

Bucket

Bucket specifications
Reference Bucket Capacity2.00 yd³
Maximum Bucket Capacity2.50 yd³
Minimum Bucket Capacity2.00 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth277 in
Max Vertical Wall Digging Depth240 in
Max Cutting Height404 in
Max Loading Height280 in
Max Reach Along Ground414 in
Shipping Length of Unit441 in
Shipping Height of Unit144 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth298 in
Max Cutting Height417 in
Max Loading Height291 in
Max Vertical Wall Digging Depth261 in
Max Reach Along Ground433 in
Shipping Length of Unit437 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth329 in
Max Cutting Height424 in
Max Reach Along Ground462 in
Max Loading Height300 in
Max Vertical Wall Dig Depth282 in
Shipping Length of Unit439 in
