Volvo

EC460C

Excavator

Operating Weight
103,900 lb
Max Digging Depth
259 in
Max Digging Depth
272 in
Net Power
315.0 hp
All excavators

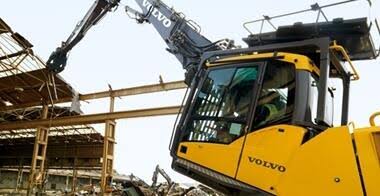

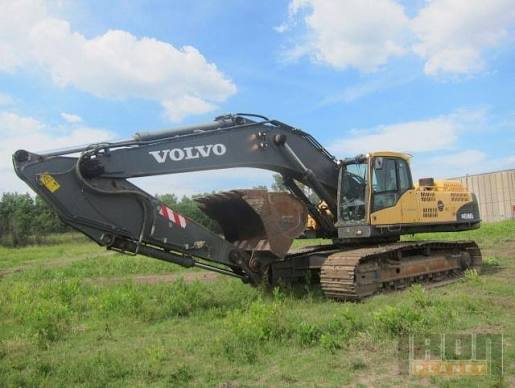

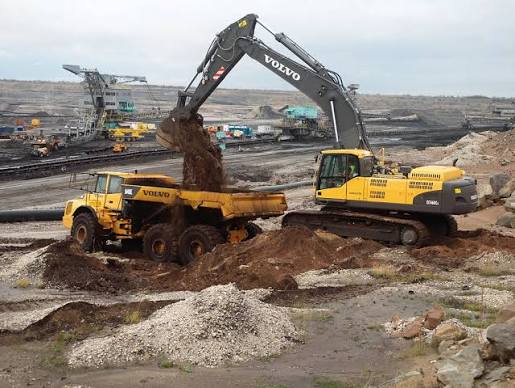

Volvo EC460C Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

67 data points

Operating Specifications

Operating Specifications specifications
Operating Weight103,900 lb
Fuel Capacity181.0 gal
Hydraulic Pump Flow Capacity182.0 gal/min
Hydraulic System Fluid Capacity138.7 gal
Hydraulic System Relief Valve Pressure4,550 psi
Engine Oil Capacity11.1 gal
Cooling System Fluid Capacity15.9 gal
Operating Voltage24 V
Swing Drive Fluid Capacity3.2 gal
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD12D EAE3
Displacement738 in³
Power Measured @1,800 rpm
Gross Power329.0 hp
Net Power315.0 hp
AspirationTurbocharged with Intercooler
Torque Measured @1,350 rpm
Max Torque1,269 lb-ft

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab128 in
Length of Track on Ground173 in
Tail Swing Radius148 in
Width to Outside of Tracks144 in
Removal Counterweight Clearance50 in

Undercarriage

Undercarriage specifications
Ground Pressure8 psi
Track Gauge108 in
Number of Track Rollers per Side9
Max Travel Speed3.0 mph
Shoe Size36 in
Number of Shoes per Side52
Number of Carrier Rollers per Side2
Drawbar Pull72,990 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth259 in
Max Reach Along Ground420 in
Max Loading Height276 in
Max Vertical Wall Digging Depth229 in
Max Cutting Height418 in
Shipping Length of Unit456 in
Shipping Height of Unit149 in

Bucket

Bucket specifications
Reference Bucket Capacity4.09 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth272 in
Max Vertical Wall Digging Depth243 in
Max Cutting Height426 in
Max Loading Height294 in
Max Reach Along Ground437 in
Shipping Length of Unit475 in
Shipping Height of Unit144 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth304 in
Max Cutting Height432 in
Max Loading Height301 in
Max Vertical Wall Digging Depth270 in
Max Reach Along Ground465 in
Shipping Length of Unit475 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth325 in
Max Cutting Height439 in
Max Reach Along Ground485 in
Max Loading Height309 in
Max Vertical Wall Dig Depth288 in
Shipping Length of Unit475 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth361 in
Max Reach Along Ground514 in
Max Cutting Height437 in
Max Loading Height311 in
Max Vertical Wall Dig Depth305 in
Shipping Height of Unit183 in
Shipping Length of Unit470 in
