Volvo

EC480D

Excavator

Operating Weight
106,483 lb
Max Digging Depth
269 in
Max Digging Depth
300 in
Net Power
348.0 hp
All excavators

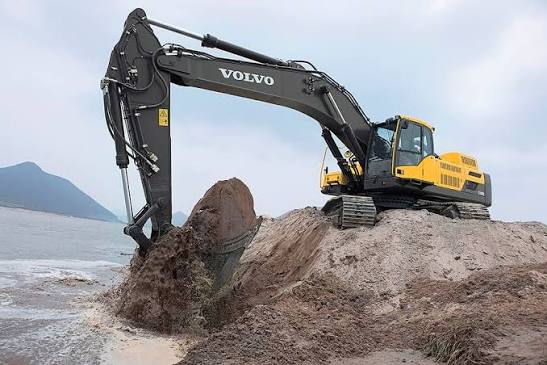

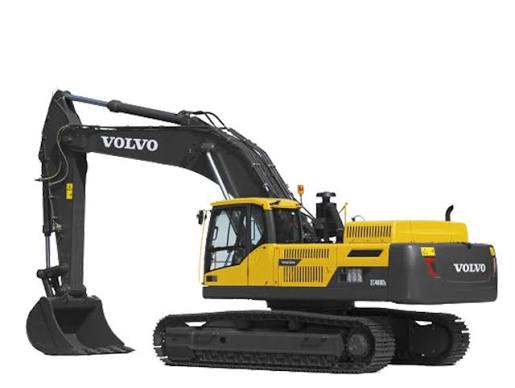

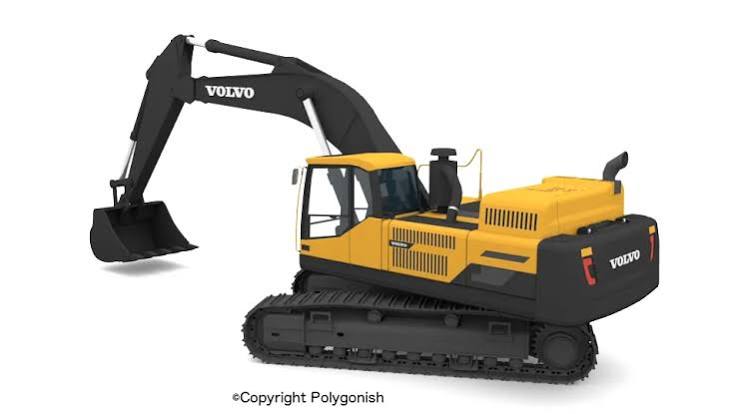

Volvo EC480D Excavator
1 / 5
Image 1 of 5
Image: volvoce.com

Specifications

60 data points

Operating Specifications

Operating Specifications specifications
Operating Weight106,483 lb
Fuel Capacity181.0 gal
Hydraulic Pump Flow Capacity189.2 gal/min
Hydraulic System Fluid Capacity138.7 gal
Hydraulic System Relief Valve Pressure5,120 psi
Engine Oil Capacity11.1 gal
Cooling System Fluid Capacity15.9 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD13H
Displacement781 in³
Power Measured @1,800 rpm
Gross Power360.0 hp
Net Power348.0 hp
AspirationTurbocharged with Intercooler
Torque Measured @1,400 rpm
Max Torque1,328 lb-ft

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab130 in
Length of Track on Ground173 in
Tail Swing Radius150 in
Width to Outside of Tracks144 in
Removal Counterweight Clearance50 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge108 in
Number of Track Rollers per Side9
Max Travel Speed3.2 mph
Shoe Size28 in
Number of Shoes per Side52
Number of Carrier Rollers per Side2
Drawbar Pull74,970 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth269 in
Max Reach Along Ground437 in
Max Loading Height298 in
Max Vertical Wall Digging Depth244 in
Max Cutting Height432 in
Shipping Length of Unit478 in
Shipping Height of Unit155 in

Bucket

Bucket specifications
Reference Bucket Capacity4.20 yd³
Maximum Bucket Capacity4.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth300 in
Max Vertical Wall Digging Depth276 in
Max Cutting Height439 in
Max Loading Height306 in
Max Reach Along Ground465 in
Shipping Length of Unit478 in
Shipping Height of Unit142 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth322 in
Max Cutting Height445 in
Max Loading Height313 in
Max Vertical Wall Digging Depth294 in
Max Reach Along Ground485 in
Shipping Length of Unit478 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth357 in
Max Cutting Height443 in
Max Reach Along Ground514 in
Max Loading Height315 in
Max Vertical Wall Dig Depth312 in
Shipping Length of Unit475 in
