Volvo

EC700CL

Excavator

Operating Weight
158,070 lb
Max Digging Depth
285 in
Max Digging Depth
306 in
Net Power
424.0 hp
All excavators

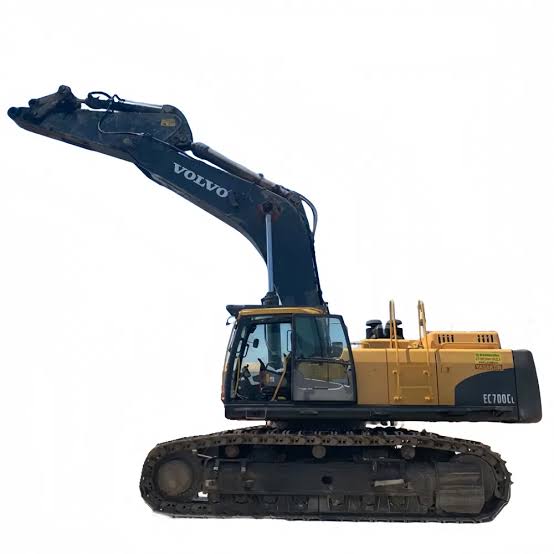

Volvo EC700CL Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

64 data points

Operating Specifications

Operating Specifications specifications
Operating Weight158,070 lb
Fuel Capacity222.0 gal
Hydraulic Pump Flow Capacity230.0 gal/min
Hydraulic System Fluid Capacity173.1 gal
Hydraulic System Relief Valve Pressure4,980 psi
Engine Oil Capacity13.8 gal
Cooling System Fluid Capacity17.2 gal
Operating Voltage24 V
Swing Drive Fluid Capacity3.2 gal
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelD16E EAE3
Displacement982 in³
Power Measured @1,800 rpm
Gross Power464.0 hp
Net Power424.0 hp
AspirationTurbocharged and Intercooled
Torque Measured @1,350 rpm
Max Torque1,660 lb-ft

Dimensions

Dimensions specifications
Ground Clearance35 in
Height - Top of Cab139 in
Length of Track on Ground187 in
Tail Swing Radius162 in
Width to Outside of Tracks169 in
Removal Counterweight Clearance60 in

Undercarriage

Undercarriage specifications
Ground Pressure11 psi
Track Gauge132 in
Number of Track Rollers per Side8
Max Travel Speed2.9 mph
Shoe Size36 in
Number of Shoes per Side48
Number of Carrier Rollers per Side3
Drawbar Pull101,830 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth285 in
Max Reach Along Ground442 in
Max Loading Height275 in
Max Vertical Wall Digging Depth200 in
Max Cutting Height433 in
Shipping Length of Unit481 in
Shipping Height of Unit192 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed7 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth306 in
Max Vertical Wall Digging Depth268 in
Max Cutting Height492 in
Max Loading Height331 in
Max Reach Along Ground486 in
Shipping Length of Unit526 in
Shipping Height of Unit183 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth331 in
Max Cutting Height498 in
Max Loading Height340 in
Max Vertical Wall Digging Depth285 in
Max Reach Along Ground509 in
Shipping Length of Unit521 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth357 in
Max Cutting Height510 in
Max Reach Along Ground534 in
Max Loading Height352 in
Max Vertical Wall Dig Depth309 in
Shipping Length of Unit520 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth396 in
Max Reach Along Ground571 in
Max Cutting Height529 in
Max Loading Height371 in
Max Vertical Wall Dig Depth347 in
