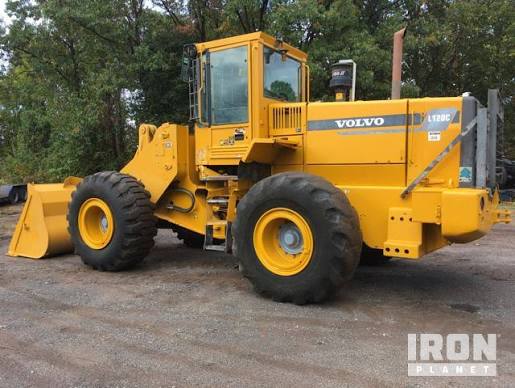

Volvo
L120C
- Operating Weight
- 41,520 lb
- Bucket Capacity - heaped
- 4.80 yd³
- Gross Power
- 208.0 hp
- Net Power
- 201.0 hp
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 41,520 lb |
|---|---|
| Fuel Capacity | 67.4 gal |
| Tire Size | 23.5R25*L2 |
| Hydraulic System Fluid Capacity | 41.0 gal |
| Static Tipping Weight | 29,550 lb |
| Operating Voltage | 24 V |
| Turning Radius | 254 in |
| Engine Oil Fluid Capacity | 5.9 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 9.6 gal |
| Rear Axle/Diff Fluid Capacity | 10.9 gal |
| Cooling System Fluid Capacity | 17.2 gal |
| Transmission Fluid Capacity | 8.8 gal |
Engine
| Engine Model | TD 73 KDE |
|---|---|
| Displacement | 409 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 208.0 hp |
| Net Power | 201.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,100 rpm |
Hydraulic System
| Pump Flow Capacity | 74.0 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 2.8 s |
| Dump Time | 1.8 s |
| Relief Valve Setting | 3,263 psi |
| Pump Type | vane pump |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 126 in |
| Width Over Tires | 106 in |
| Reach at Max Lift and Dump | 50 in |
| Length with Bucket on Ground | 319 in |
| Hinge Pin - Max Height | 162 in |
Transmission
| Max Speed - Forward | 22.1 mph |
|---|---|
| Max Speed - Reverse | 15.7 mph |
| Transmission Type | automatic power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.80 yd³ |
|---|---|
| Dump Clearance at Max Raise | 111 in |
| Breakout Force | 31,630 lb |
| Bucket Width | 114 in |
