Volvo

L150D

Wheel Loader

Operating Weight
51,478 lb
Bucket Capacity - heaped
4.90 yd³
Gross Power
257.0 hp
Net Power
253.0 hp
All wheel loaders

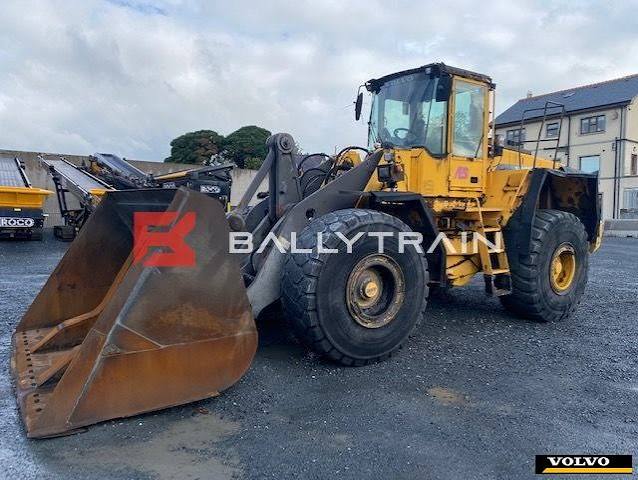

Volvo L150D Wheel Loader
1 / 5
Image 1 of 5
Image: hexco.ae

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Operating Weight51,478 lb
Fuel Capacity84.1 gal
Tire Size26.5R25*L3
Hydraulic System Fluid Capacity43.6 gal
Static Tipping Weight38,338 lb
Operating Voltage24 V
Turning Radius289 in
Engine Oil Fluid Capacity7.2 gal
Rear Axle Oscillation30 °
Alternator Supplied Amperage60 A
Front Axle/Diff Fluid Capacity14.6 gal
Rear Axle/Diff Fluid Capacity14.3 gal
Cooling System Fluid Capacity18.5 gal
Transmission Fluid Capacity9.3 gal

Engine

Engine specifications
Engine ModelTD 103 KCE
Displacement586 in³
Power Measured @2,100 rpm
Gross Power257.0 hp
Net Power253.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,100 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity82.7 gal/min
Raise Time6.7 s
Lower Time3.2 s
Dump Time1.9 s
Relief Valve Setting3,046 psi
Pump Typevane pump

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab1,404 in
Wheelbase141 in
Width Over Tires117 in
Reach at Max Lift and Dump52 in
Length with Bucket on Ground337 in
Hinge Pin - Max Height172 in

Transmission

Transmission specifications
Max Speed - Forward21.1 mph
Max Speed - Reverse21.1 mph
Transmission TypeVolvo HT 210 automatic power shift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped4.90 yd³
Dump Clearance at Max Raise118 in
Bucket Width126 in
