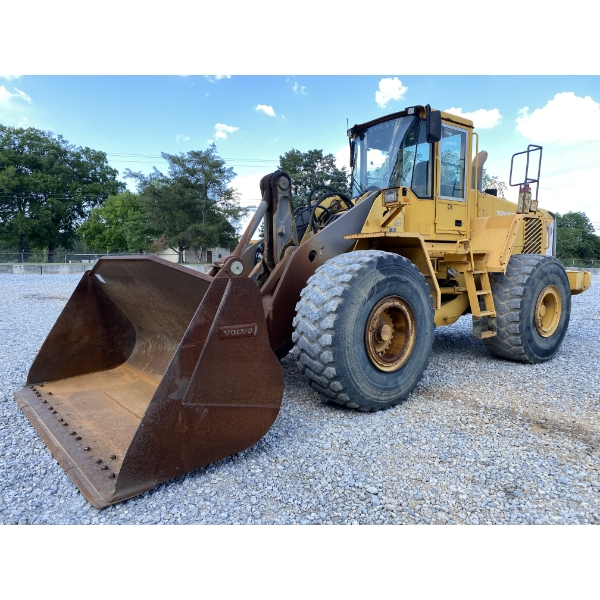

Volvo
L150E
- Operating Weight
- 51,456 lb
- Bucket Capacity - heaped
- 5.70 yd³
- Gross Power
- 287.0 hp
- Net Power
- 284.0 hp
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 51,456 lb |
|---|---|
| Fuel Capacity | 88.5 gal |
| Tire Size | 26.5R25 L3 |
| Hydraulic System Fluid Capacity | 41.3 gal |
| Static Tipping Weight | 38,316 lb |
| Operating Voltage | 24 V |
| Turning Radius | 288 in |
| Engine Oil Fluid Capacity | 10.5 gal |
| Rear Axle Oscillation | 30 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 11.9 gal |
| Rear Axle/Diff Fluid Capacity | 14.6 gal |
| Cooling System Fluid Capacity | 11.8 gal |
| Transmission Fluid Capacity | 11.9 gal |
Engine
| Engine Model | D9A LB E2 |
|---|---|
| Displacement | 574 in³ |
| Power Measured @ | 1,600 rpm |
| Gross Power | 287.0 hp |
| Net Power | 284.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 47.6 gal/min |
|---|---|
| Raise Time | 5.9 s |
| Lower Time | 3.7 s |
| Dump Time | 2.0 s |
| Relief Valve Setting | 3,626 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 142 in |
| Wheelbase | 141 in |
| Width Over Tires | 117 in |
| Reach at Max Lift and Dump | 56 in |
| Length with Bucket on Ground | 350 in |
| Hinge Pin - Max Height | 172 in |
Transmission
| Max Speed - Forward | 24.5 mph |
|---|---|
| Max Speed - Reverse | 24.5 mph |
| Transmission Type | Volvo HTE210 |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 5.70 yd³ |
|---|---|
| Dump Clearance at Max Raise | 113 in |
| Breakout Force | 39,589 lb |
| Bucket Width | 119 in |
