Volvo

L30G

Wheel Loader

Gross Power
74.0 hp
Net Power
75.0 hp
All wheel loaders

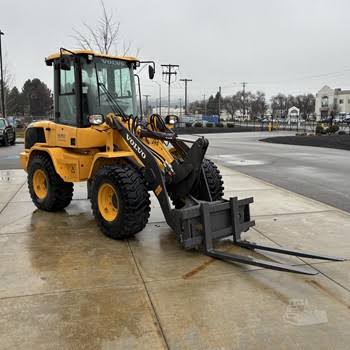

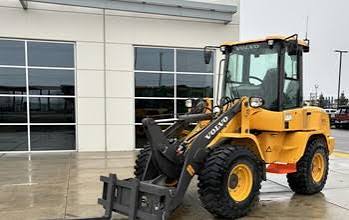

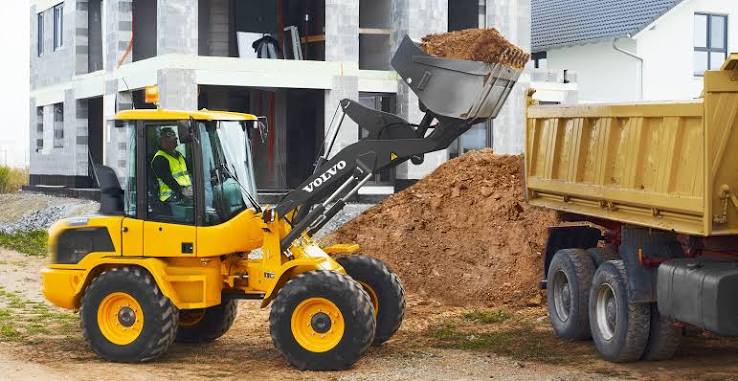

Volvo L30G Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity22.2 gal
Hydraulic System Fluid Capacity14.3 gal
Engine Oil Fluid Capacity3.0 gal
Cooling System Fluid Capacity3.0 gal
Rated Bucket Capacity1.20 – 2.00 yd³

Engine

Engine specifications
Engine ModelVolvo D3.3M or D3.3H
Displacement201 in³
Power Measured @2,600 rpm
Gross Power74.0 hp
Net Power75.0 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,500 rpm
MakeVolvo
Bore4 in
Stroke5 in

Weights

Weights specifications
Operating Weight12,125 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity15.1 gal/min
Working pressure23 MPa 230 bar
Engine speed2,600 rpm

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab108 in
Wheelbase85 in
Width Over Tires73 in
Length with Bucket on Ground209 in
Hinge Pin - Max Height128 in

Bucket

Bucket specifications
Dump Clearance at Max Raise101 in
Breakout Force13,713 lb

General Specifications

General Specifications specifications
Operating Weight12,170 (5,520) — Starting 2022 Model Year
Bucket Capacity1.4 (1.1) — Starting 2022 Model Year
Engine typeVolvo D3.3M — Starting 2022 Model Year
Engine Power74 (55) — Starting 2022 Model Year
Max Dump Height8.3 (2.5) — Starting 2022 Model Year

Drive System

Drive System specifications
Transport speed, maximum18.7 mph

Hydraulic cycle times (unloaded)

Hydraulic cycle times (unloaded) specifications
Lift6.5 s
Lower3.5 s
Dump time1.5 s

Steering System

Steering System specifications
Articulation Angle40 °
Maximum flow8.9 gal/min
Steering cylinders1
Working pressure19 MPa 2756 psi

Electrical System

Electrical System specifications
Voltage12 V
Battery capacity100 Ah
Alternator rating1260/90 (W/A)
Starter motor output4.1 hp
