Volvo
L330D
- Operating Weight
- 111,400 lb
- Bucket Capacity - heaped
- 9.10 yd³
- Gross Power
- 503.0 hp
- Net Power
- 498.0 hp
1 / 5

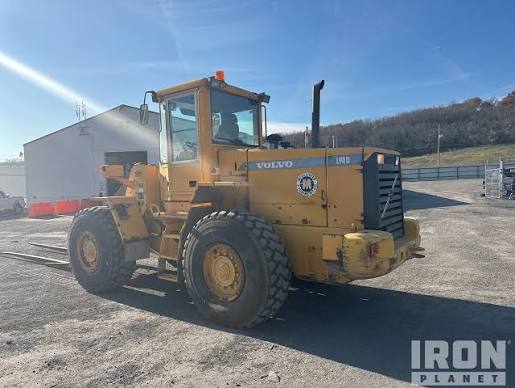

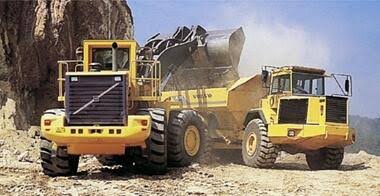

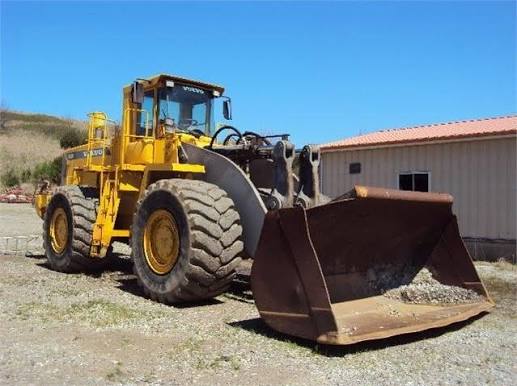

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 111,400 lb |
|---|---|
| Fuel Capacity | 183.1 gal |
| Tire Size | 35/65R33 XLD D1*L-4 |
| Hydraulic System Fluid Capacity | 145.9 gal |
| Static Tipping Weight | 78,441 lb |
| Operating Voltage | 24 V |
| Turning Radius | 353 in |
| Engine Oil Fluid Capacity | 16.2 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 18.0 gal |
| Rear Axle/Diff Fluid Capacity | 18.0 gal |
| Cooling System Fluid Capacity | 23.8 gal |
| Transmission Fluid Capacity | 24.4 gal |
Engine
| Engine Model | TD 164 KALE |
|---|---|
| Displacement | 984 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 503.0 hp |
| Net Power | 498.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged and Intercooled |
| Torque Measured @ | 1,000 rpm |
Hydraulic System
| Pump Flow Capacity | 89.9 gal/min |
|---|---|
| Raise Time | 8.3 s |
| Lower Time | 4.4 s |
| Dump Time | 1.9 s |
| Relief Valve Setting | 3,771 psi |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 166 in |
| Wheelbase | 161 in |
| Width Over Tires | 144 in |
| Reach at Max Lift and Dump | 67 in |
| Length with Bucket on Ground | 403 in |
| Hinge Pin - Max Height | 200 in |
Transmission
| Max Speed - Forward | 21.3 mph |
|---|---|
| Max Speed - Reverse | 21.3 mph |
| Transmission Type | C8421H Automatic power shift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 9.10 yd³ |
|---|---|
| Dump Clearance at Max Raise | 148 in |
| Breakout Force | 105,548 lb |
| Bucket Width | 157 in |
