Volvo

L35B

Wheel Loader

Operating Weight
13,779 lb
Bucket Capacity - heaped
1.40 yd³
Gross Power
77.0 hp
Net Power
75.0 hp
All wheel loaders

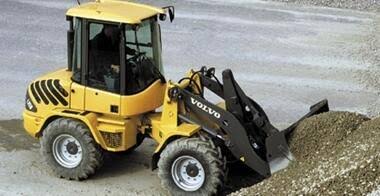

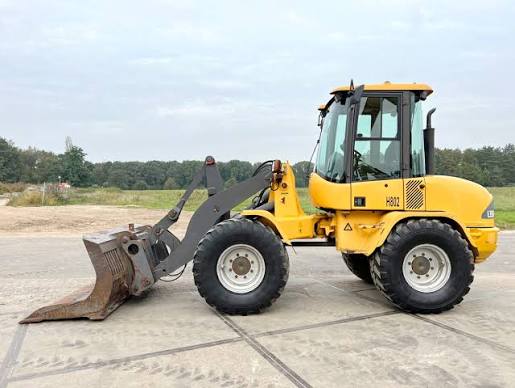

Volvo L35B Wheel Loader
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,779 lb
Fuel Capacity22.8 gal
Tire Size400/70 R20
Hydraulic System Fluid Capacity17.2 gal
Static Tipping Weight9,700 lb
Operating Voltage12 V
Turning Radius173 in
Engine Oil Fluid Capacity2.8 gal
Rear Axle Oscillation20 °
Alternator Supplied Amperage80 A
Front Axle/Diff Fluid Capacity3.2 gal
Rear Axle/Diff Fluid Capacity3.2 gal
Rated Bucket Capacity1.40 – 2.30 yd³

Engine

Engine specifications
Engine ModelD3DCEE2
Displacement190 in³
Power Measured @2,600 rpm
Gross Power77.0 hp
Net Power75.0 hp
Number of Cylinders4
AspirationTurbocharged
Torque Measured @1,600 rpm
MakeVolvo

Weights

Weights specifications
Operating Weight13,710 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity19.3 gal/min
Raise Time5.5 s
Lower Time3.5 s
Dump Time1.2 s
Relief Valve Setting3,625 psi
Pump TypeGear type-pump

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab108 in
Wheelbase85 in
Width Over Tires77 in
Reach at Max Lift and Dump32 in
Length with Bucket on Ground214 in
Hinge Pin - Max Height132 in

Transmission

Transmission specifications
Max Speed - Forward18.7 mph
Max Speed - Reverse18.7 mph
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Bucket Capacity - heaped1.40 yd³
Dump Clearance at Max Raise106 in
Bucket Width79 in
