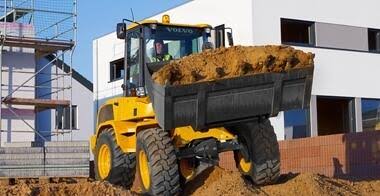

Volvo
Case
21D
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Fuel Capacity | 22.2 gal |
|---|---|
| Hydraulic System Fluid Capacity | 14.3 gal |
| Engine Oil Fluid Capacity | 3.0 gal |
| Cooling System Fluid Capacity | 3.0 gal |
| Rated Bucket Capacity | 1.29 – 2.00 yd³ |
Engine
| Engine Model | Volvo D3.3M or D3.3H |
|---|---|
| Displacement | 201 in³ |
| Power Measured @ | 2,600 rpm |
| Gross Power | 74.0 hp |
| Net Power | 75.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,500 rpm |
| Make | Volvo |
| Bore | 4 in |
| Stroke | 5 in |
Weights
| Operating Weight | 13,779 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 18.3 gal/min |
|---|---|
| Working pressure | 24 MPa 240 bar |
| Engine speed | 2,600 rpm |
Dimensions
| Ground Clearance | 25 in |
|---|---|
| Height - Top of Cab | 109 in |
| Wheelbase | 85 in |
| Width Over Tires | 77 in |
| Length with Bucket on Ground | 214 in |
| Hinge Pin - Max Height | 132 in |
Bucket
| Dump Clearance at Max Raise | 106 in |
|---|---|
| Breakout Force | 13,601 lb |
General Specifications
| Operating Weight | 13,448 (6,100) — Starting 2021 Model Year |
|---|---|
| Bucket Capacity | 1.6 (1.2) — Starting 2022 Model Year |
| Engine type | Volvo D3.3M — Starting 2022 Model Year |
| Engine Power | 74 (55) — Starting 2022 Model Year |
| Max Dump Height | 8.8 (2.7) — Starting 2019 Model Year |
Drive System
| Transport speed, maximum | 18.7 mph |
|---|
Hydraulic cycle times (unloaded)
| Lift | 5.5 s |
|---|---|
| Lower | 3.5 s |
| Dump time | 1.2 s |
Steering System
| Articulation Angle | 40 ° |
|---|---|
| Maximum flow | 8.9 gal/min |
| Steering cylinders | 1 |
| Working pressure | 19 MPa 2756 psi |
Electrical System
| Voltage | 12 V |
|---|---|
| Battery capacity | 100 Ah |
| Alternator rating | 1260/90 (W/A) |
| Starter motor output | 4.1 hp |
