Wirtgen

W120F

Cold Planer

Operating Weight - Full Load
47,840 lb
Cutting Width
48 in
Displacement
507 in³
Gross Power
304.0 hp
All cold planers/milling machines

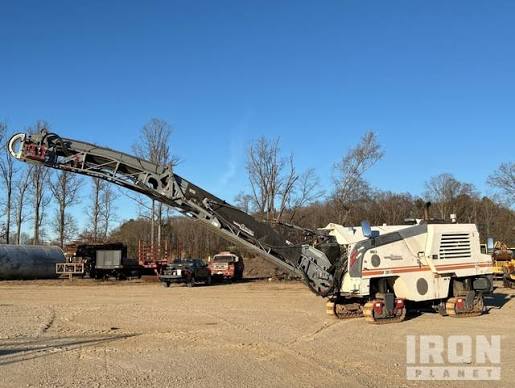

Wirtgen W120F Cold Planer
1 / 5
Image 1 of 5
Image: pavingequipment.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight - Full Load47,840 lb
Operating Speed1.2 mph
Travel Speed3.3 mph
Fuel Capacity163.8 gal
Water Spray System Fluid Capacity369.9 gal
Shipping Weight - Empty43,431 lb
Hydraulic System Fluid Capacity34.4 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelQSC 8.3
Displacement507 in³
Power Measured @2,100 rpm
Gross Power304.0 hp
Net Power280.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Shipping Height122 in
Shipping Length233 in
Shipping Width109 in
Operating Length530 in
Max Operating Height217 in

Track

Track specifications
Number of Track Units4
Front Track Width10 in
Rear Track Width10 in
Front Track Length53 in
Rear Track Length53 in

Conveyor System

Conveyor System specifications
Discharge Conveyor Width24 in
Collecting Conveyor Width26 in
Discharge Conveyor Swing (R/L)36 °

Rotary Cutter

Rotary Cutter specifications
Cutting Width48 in
Cutting Depth13 in
Number of Tools115
Tool Spacing1 in
Cutter Diameter39 in
