Yanmar

SV08-1B

Mini Excavator

Operating Weight
2,348 lb
Max Digging Depth
64 in
Net Power
10.3 hp
All mini excavators

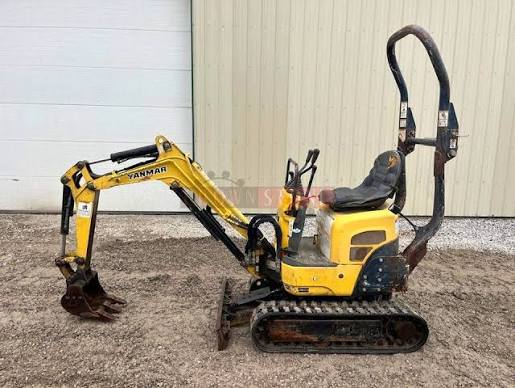

Yanmar SV08-1B Mini Excavator
1 / 5
Image 1 of 5
Image: hmequipment.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,348 lb
Fuel Capacity2.7 gal
Hydraulic Pump Flow Capacity2.6 gal/min

Engine

Engine specifications
Engine Model2TE67L-BV4
Power Measured @2,800 rpm
Net Power10.3 hp
Engine MakeYANMAR

Dimensions

Dimensions specifications
Ground Clearance6 in
Height - Top of Cab91 in
Tail Swing Radius29 in
Width to Outside of Tracks33 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed1.2 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth64 in
Max Reach Along Ground107 in
Boom Swing - Left45 °
Boom Swing - Right90 °

Bucket

Bucket specifications
Bucket digging Force - SAE2,360 lb
Arm digging Force1,390 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed8 rpm
