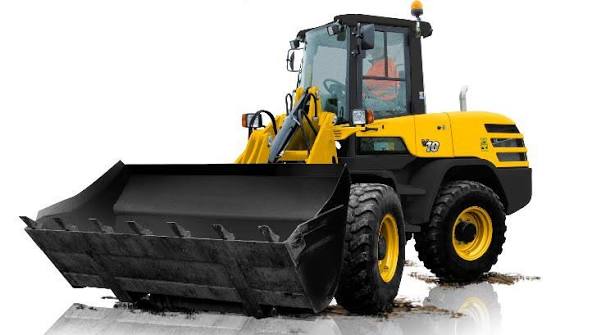

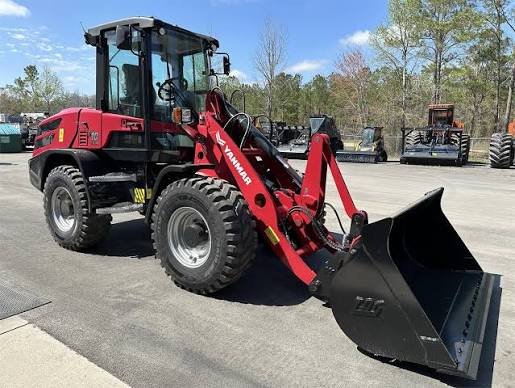

Yanmar
Case
21D
Wheel Loader
43 specifications
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 12,787 lb |
|---|---|
| Fuel Capacity | 29.0 gal |
| Tire Size | 405/70 R 20 SPT 9 Dunlop |
| Hydraulic System Fluid Capacity | 23.0 gal |
| Static Tipping Weight | 9,634 lb |
| Operating Voltage | 12 V |
| Turning Radius | 175 in |
| Rated Bucket Capacity | 1.29 yd³ |
Engine
| Engine Model | TCD 2.9 L4 |
|---|---|
| Displacement | 177 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 74.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,600 rpm |
| Engine Make | Deutz |
| Make | Deutz |
Weights
| Operating Weight | 12,786 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 19.0 gal/min |
|---|---|
| Relief Valve Setting | 3,000 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 109 in |
| Wheelbase | 88 in |
| Width Over Tires | 73 in |
| Reach at Max Lift and Dump | 29 in |
| Length with Bucket on Ground | 207 in |
| Hinge Pin - Max Height | 133 in |
Transmission
| Max Speed - Forward | 22.4 mph |
|---|---|
| Transmission Type | Hydrostatic |
Bucket
| Bucket Capacity - heaped | 1.40 yd³ |
|---|---|
| Dump Clearance at Max Raise | 104 in |
| Breakout Force | 12,365 lb |
| Bucket Width | 77 in |
General Specifications
| Operating Weight | 12,787 (5,800) — Starting 2024 Model Year |
|---|---|
| Operating Weight lbs (kg) | 12,787 (5,800) — Starting 2025 Model Year |
| Bucket Capacity | 1.31 (1.0) — Starting 2024 Model Year |
| Bucket Capacity cu. yd. (cu m) | 1.31 (1.0) — Starting 2025 Model Year |
| Engine type | YANMAR 4TNV98CT — Starting 2024 Model Year |
| Engine Power | 73 (54.4) — Starting 2024 Model Year |
| Max Dump Height | 8.6 (2.6) — Starting 2024 Model Year |
| Max Dump Height ft.( m) | 8.7 (2.6) — Starting 2025 Model Year |
| OperatingWeight lbs. (kg) | 12,787 (5,800) — Starting 2026 Model Year |
| Engine Power Net hp (kW) | 73 (54.4) — Starting 2025 Model Year |
