Zoomlion

QY100H-3

Truck Crane

Operating Weight
119,050 lb
Max Lift Capacity
220,462 lb
Max Speed - Forward
46.7 mph
All truck cranes

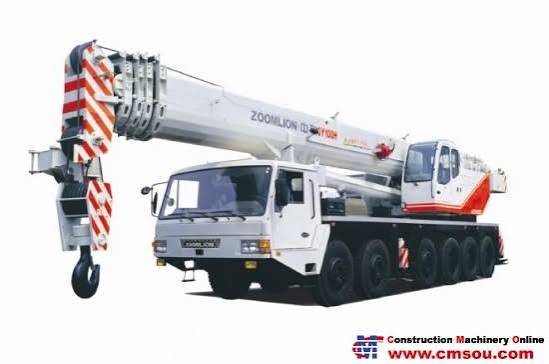

Zoomlion QY100H-3 Truck Crane
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight119,050 lb

Dimensions

Dimensions specifications
Ground Clearance12 in
Transport Width119 in
Transport Height155 in
Transport Length602 in
Width w/ Outriggers Extended307 in
Upper Structure Tail Swing Radius182 in
Carrier Length483 in

Transmission

Transmission specifications
Max Speed - Forward46.7 mph

Boom

Boom specifications
Max Lift Capacity220,462 lb
Max Height @ Max Raise Angle - no jib2,004 in
Min Height @ Max Raise Angle548 in
Max Elevating Angle80 °

CARRIER ENGINE

CARRIER ENGINE specifications
Gross Power523.0 hp
Power Measured @1,800 rpm
Max Torque1,770 lb-ft
Torque Measured @1,080 rpm

UPPER STRUCTURE ENGINE

UPPER STRUCTURE ENGINE specifications
Gross Power201.2 hp
MakeZoomlion
Power Measured @2,200 rpm
Torque Measured @1,600 rpm
Max Torque553 lb-ft
